hydro cyclone filter

hydro cyclone filter

Product
Product Product Product
Get Best Quote

Hydro cyclone filters are highly efficient filtration systems designed to separate sand, silt, and other heavy particles from water. Utilizing centrifugal force, these filters direct water into a spiral motion, causing heavier particles to settle at the bottom while clean water exits from the top. Ideal for agricultural, industrial, and irrigation applications, hydro cyclone filters enhance system performance and reduce clogging in downstream equipment. Made from durable materials, they ensure long-lasting service, require minimal maintenance, and are easy to install for effective sediment removal.

Types hydro cyclone filter :

Hydro cyclone filters efficiently separate sand and heavy particles from water using centrifugal force. Ideal for irrigation and industrial use, they enhance system performance, reduce clogging, and ensure durable, low-maintenance filtration.

There are four basic grades available in hydro cyclone filter:

  • Standard Grade: Designed for general-purpose filtration in residential and small-scale agricultural applications.
  • Industrial Grade: Built for heavy-duty operations, handling larger volumes and higher pressures.
  • High-Efficiency Grade: Offers superior filtration performance for fine particles, ideal for precision irrigation systems.
  • Custom Grade: Tailored solutions to meet specific industry requirements, with customizable features for enhanced efficiency and durability.

Product Specification

Leading Manufacturer of Resin Coated Product, 15mm Product, 12mm Product, 10mm Product, 9mm Wooden Product and Commercial Product

Material: High-grade corrosion-resistant stainless steel or reinforced polymer
Flow Rate:td> Ranges from 5 m³/h to 100 m³/h, depending on model size
Operating Pressure: 2.5 to 10 bar)
Filtration Capacity: Capable of separating particles as small as 40 microns
Inlet/Outlet Size: 1.5 inches to 6 inches (customizable)
Efficiency: Up to 90% sand and sediment separation efficiency
Installation Type: Vertical or horizontal configuration
Maintenance: Easy to disassemble and clean with minimal downtime
Applications: Suitable for agricultural irrigation, industrial processes, and water treatment systems
Certifications: ISO 9001, CE-certified for quality assurance
Yes, I am Interested
You may Also Like These
Product

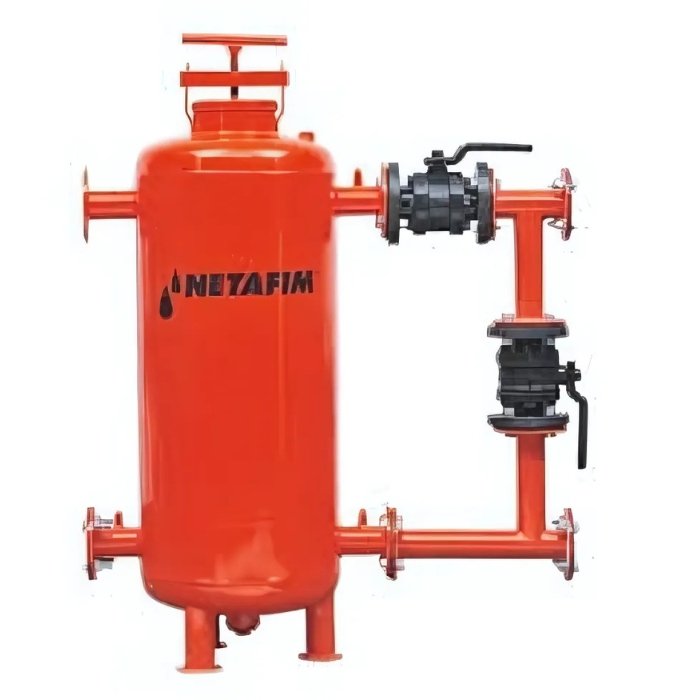

media sand filter

Product Brochure

A media sand filter is a type of filtration system commonly used to remove suspended solids, particles, and turbidity from water. It operates by passing water through a bed of specially graded sand (the "media") that traps contaminants as the water flows through.

Material: Stainless Steel/High-Grade Plastic (depending on model)
Filtration Capacity: 10 to 300 microns
Flow Rate: 10 m³/h to 500 m³/h (varies with model)
Cleaning Mechanism: Automatic backwashing or suction scanning
Pressure Range: 2 to 10 bar
Inlet/Outlet Size: 1 inch to 12 inches (customizable)
Control System: Automatic electronic control with manual override
Temperature Range: Up to 60°C (custom models available for higher temperatures)
Installation: Horizontal or vertical mounting
Power Supply: 220-240V AC, 50/60Hz
Maintenance: Low-maintenance with self-cleaning mechanism for reduced downtime
Get Best Quote Request A Callback

FAQs

What is a hydro cyclone filter?

A hydro cyclone filter is a device that removes suspended solids and sediment from water by using centrifugal force. Water enters the cyclone tangentially, creating a spinning motion that separates heavier particles, which settle and are discharged from the bottom, while cleaner water exits from the top.

The water’s rotational flow inside the cyclone generates centrifugal force, pushing heavier particles toward the outer wall and down to the sediment outlet. Lighter and cleaner water moves upward through the center and exits the filter, effectively separating solids without any moving parts.

They are commonly used in agricultural irrigation systems, industrial water treatment, mining operations, and municipal water supply systems where removal of sand, grit, and heavy particles is necessary to protect equipment.

Hydro cyclone filters require no electricity or moving parts, making them low-maintenance and durable. They effectively remove large volumes of sediment, reduce wear on pumps and valves, and improve the lifespan of downstream filters and irrigation components.

Yes, they are designed to handle high flow rates and variable water qualities, making them suitable for large irrigation systems and heavy-duty applications.
